Aromatic couple makes new chemical bonds ~ Activating esters for synthesizing bioactive derivatives ~

Making carbon-carbon bonds continues to be an important strategy to synthesize useful pharmaceuticals, agrochemicals and organic materials. Through the global collaboration between ITbM and NSF-CCHF, chemists have expanded the scope of a Nobel Prize-winning carbon-carbon bond forming reaction by using aromatic esters and boronic acids as coupling partners in the presence of an economically and environmentally friendly nickel catalyst.



Nagoya, Japan - Esters have been identified to act as a new and clean coupling partner for the carbon-carbon bond forming cross-coupling reaction to make useful compounds for pharmaceuticals, agrochemicals and organic materials.

In a new collaborative study published online in Nature Communications, synthetic and theoretical chemists at the Institute of Transformative Bio-Molecules (ITbM), Nagoya University and the NSF Center for Selective C-H Functionalization (NSF-CCHF) at Emory University have shown that a relatively inexpensive nickel catalyst triggers the decarbonylative cross-coupling between aromatic esters and boronic acids.

This cross-coupling reaction, known as the Suzuki-Miyaura cross-coupling reaction is an extremely powerful strategy to synthesize a variety of significant organic compounds on an industrial scale, thus leading to the Nobel Prize in Chemistry in 2010. The Suzuki-Miyaura cross-coupling reaction is usually catalyzed by a palladium catalyst to couple boronic acids with organic halides. However, while this reaction is very powerful these reaction partners can generate corrosive waste byproducts. Hence, many groups have been working to develop alternative coupling partners.

Researchers at ITbM and CCHF have demonstrated that readily available esters can be used to generate useful cross-coupled products, including the derivatives of plant metabolites and of a drug for treating hypertension, telmisartan.

Esters are carbonyl compounds found in fats and oils, and are known for their distinctive odors such as in bananas and pineapples, thus making them a popular ingredient in perfumes. Due to their high commercial and synthetic accessibility, the use of esters to couple with boronic acids in the Suzuki-Miyaura cross-coupling greatly expands the scope of available substrates for the reaction.


Figure 2. Suzuki-Miyaura decarbonylative cross-coupling reaction occurs between a range of phenyl esters and boronic acids.

"From its low cost and our extensive experience, we chose to use nickel as a catalyst for developing the decarbonylative cross-coupling reaction with esters," says Kenichiro Itami, Center-Director and Professor at ITbM. "Through screening of various conditions, we were pleased to find that a catalytic amount of nickel acetate along with sodium carbonate as a base is effective for the cross-coupling reaction of aromatic esters with boronic acids, to obtain the desired the decarbonylative products in good yield."

Nickel acetate is approximately 300 times less expensive compared to palladium acetate and proved to be active on the gram-scale cross-coupling between aromatic esters and boronic acids. In addition, a range of aromatic ester substrates was compatible in the reaction and no side products from carbonylative coupling were observed.

This chemoselective cross-coupling reaction has also proved to be applicable towards the synthesis of flavone and its derivatives, and has also been utilized to functionalize a phenyl ester derivative of telmisartan, a drug molecule with a relatively complex structure.

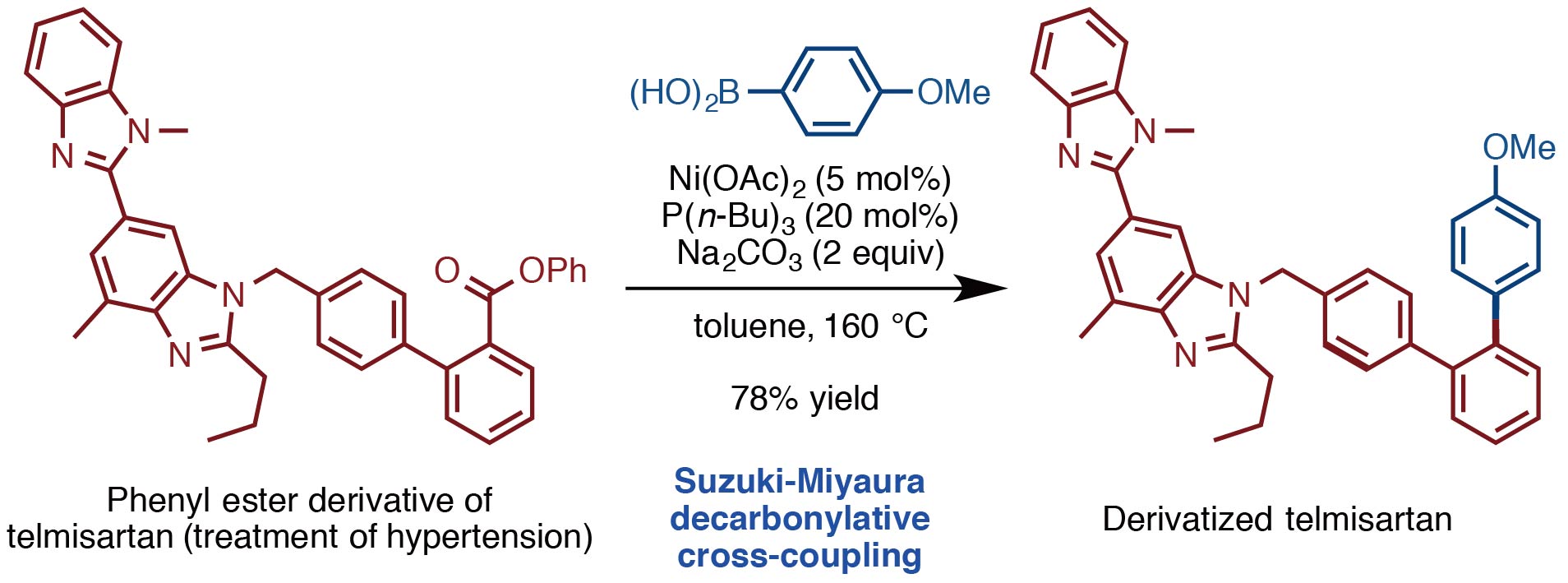

Figure 3. Application of the Suzuki-Miyaura decarbonylative cross-coupling reaction on drug derivatives

Theoretical calculations conducted by Professor Djamaladdin Musaev of Emory University provided valuable insight to the mechanism of the decarbonylative cross-coupling reaction between aromatic esters and boronic acids. The role of the base and the order of the reaction steps were identified by density functional theory calculations, indicating that the decarbonylation step occurs after transmetalation, which is accelerated by the presence of the base.

"This is a beautiful work in the frontier of organic transformations, and establishes a novel, relatively inexpensive and environmentally friendly synthetic strategy for carbon-carbon bond formation. The accompanied computational efforts revealed key mechanistic details of this novel reaction. I am grateful to Professor Itami and the entire ITbM team for providing the opportunity for us to contribute to this novel research project. This work is part of our ongoing, highly enjoyable and productive collaborations, and we thank ITbM (Nagoya University) and NSF-CCHF (Emory University), as well as MEXT, JSPS (Japan) and NSF (USA) for their support of our far-reaching international collaborative efforts," says Musaev.

"We were extremely fortunate to be able to work with Professor Musaev to look into the mechanism of this unusual decarbonylative cross-coupling reaction," says Itami. "This is obviously a result of the strong collaboration between ITbM and CCHF. We will continue to work together to conduct further optimization of the reaction system to expand its scope, including aliphatic esters."

Itami and his colleagues envisage that ongoing advances in this reaction method may lead to the development of new industrial processes for making biologically and structurally active compounds.

Journal Information:

"Decarbonylative organoboron cross-coupling of esters by nickel catalysis" by Kei Muto, Junichiro Yamaguchi, Djamaladdin G. Musaev & Kenichiro Itami is published online on June 29, 2015 in Nature Communications.

DOI: 10.1038/ncomms8508
