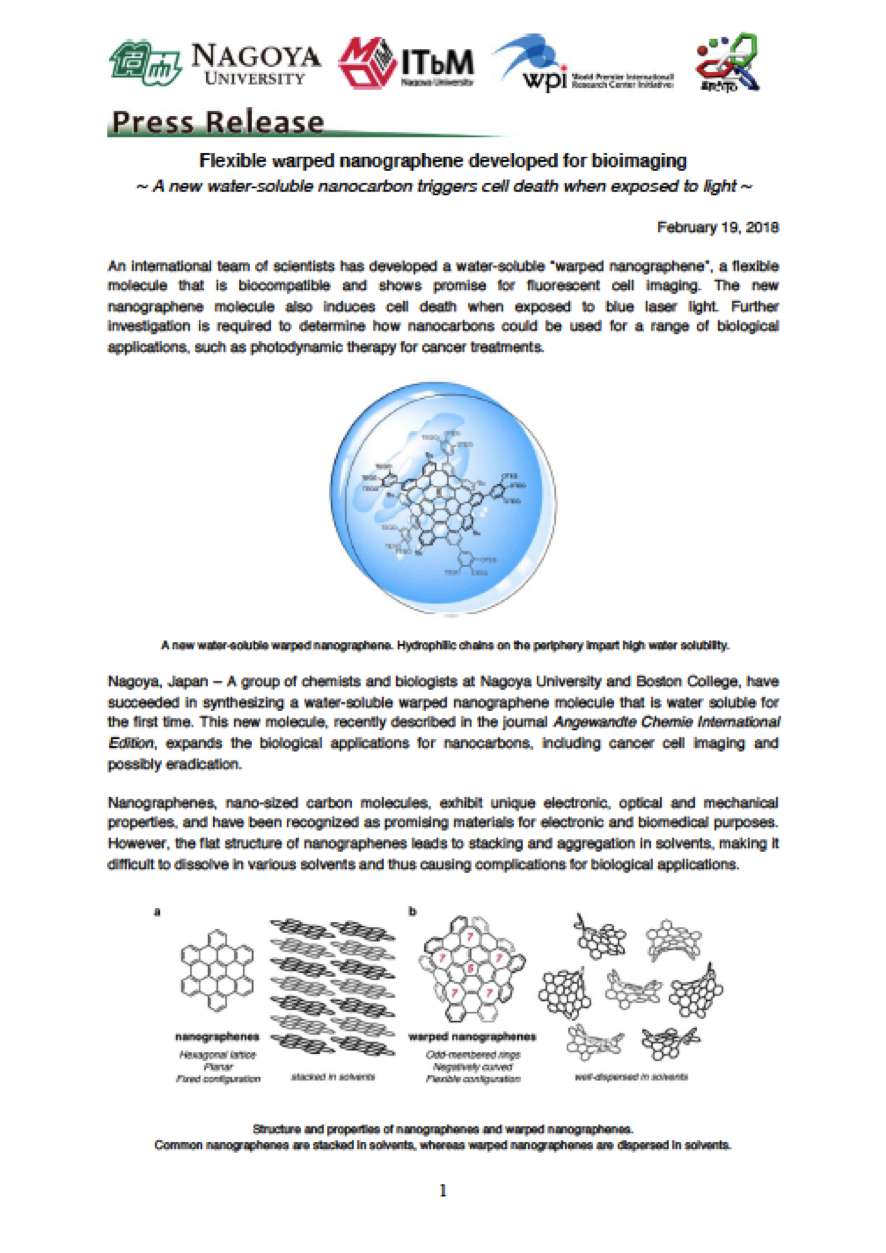

Flexible warped nanographene developed for bioimaging ~ A new water-soluble nanocarbon triggers cell death when exposed to light ~
An international team of scientists has developed a water-soluble "warped nanographene", a flexible molecule that is biocompatible and shows promise for fluorescent cell imaging. The new nanographene molecule also induces cell death when exposed to blue laser light. Further investigation is required to determine how nanocarbons could be used for a range of biological applications, such as photodynamic therapy for cancer treatments.

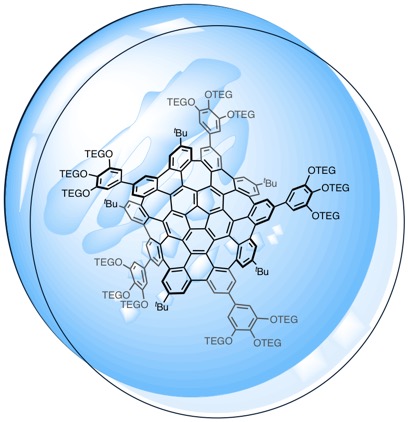

A new water-soluble warped nanographene. Hydrophilic chains on the periphery impart high water solubility.
About the research:
Nagoya, Japan - A group of chemists and biologists at Nagoya University and Boston College, have succeeded in synthesizing a water-soluble warped nanographene molecule that is water soluble for the first time. This new molecule, recently described in the journal Angewandte Chemie International Edition, expands the biological applications for nanocarbons, including cancer cell imaging and possibly eradication.
Nanographenes, nano-sized carbon molecules, exhibit unique electronic, optical and mechanical properties, and have been recognized as promising materials for electronic and biomedical purposes. However, the flat structure of nanographenes leads to stacking and aggregation in solvents, making it difficult to dissolve in various solvents and thus causing complications for biological applications.
Structure and properties of nanographenes and warped nanographenes.

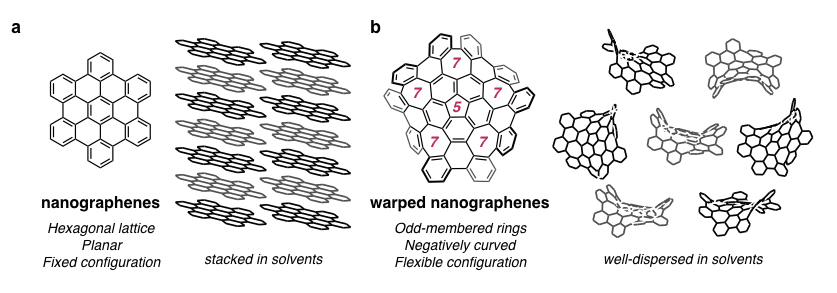

Common nanographenes are stacked in solvents, whereas warped nanographenes are dispersed in solvents.
In 2013, Professor Kenichiro Itami, director of the JST-ERATO Itami Molecular Nanocarbon Project and the Institute of Transformative Bio-Molecules (ITbM) at Nagoya University and his co-workers synthesized a warped nanographene molecule with a saddle-shape structure. The unique organization of the molecule's 26 graphene rings prevents aggregation, making it soluble in most common organic solvents. Moreover, it exhibits green fluorescence when irradiated with ultraviolet or blue light.
"We were really excited when we succeeded in synthesizing the warped nanographene molecule, and we were interested in making it available for biological applications, which we achieved by adding water-soluble functional groups to the molecule," says Itami.
Synthetic route towards water-soluble warped nanographenes.

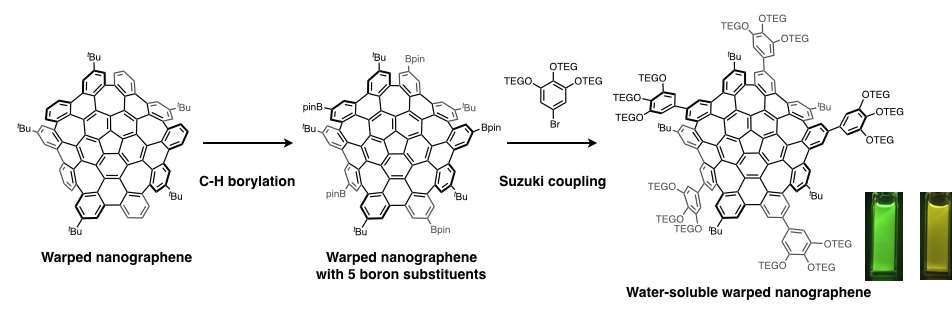

The warped nanographene undergoes C-H borylation to add boron moieties, followed by the Suzuki coupling to add water-soluble chains to the molecule (TEG = tetra(ethylene) glycol). Photo images of an ultraviolet irradiated quartz cell containing the water-soluble warped nanographene dissolved in various solvents (dichloromethane: green and water: yellow fluorescence).
In the latest study, Itami's group explains how they developed a straightforward route to make warped nanographenes water soluble. First, they replaced five hydrogen atoms with boron moieties, through an iridium-catalyzed C-H borylation reaction. The boron-substituted warped nanographene is then mixed with a compound, called an aryl halide, containing water-soluble chains. A palladium-catalyzed Suzuki-Miyaura coupling reaction leads to the water-soluble chains attaching to the edges of the nanographene molecule, making it soluble in water and other organic solvents. This method can also be used to install other functional groups to warped nanographene to easily tune its properties.
The team examined the fluorescent properties of water-soluble warped nanographene. They found that under ultraviolet light, the molecule fluoresced yellow when dissolved in water, and fluoresced green when mixed in the common organic solvent dichloromethane. The new nanographene showed high photostability, meaning that its properties do not change when exposed to light. Rather, the color of fluorescence changes according to the polarity of the solvents that they are dissolved in.
Next, Itami's team collaborated with ITbM's biologists to test if the new molecule could stain live cells for fluorescent cell imaging. They treated HeLa cells, a strain of cervical cancer cells widely used in research, with a water-soluble warped nanographene solution. Microscopic observations showed that the cells took up the molecule over a few hours and it accumulated in the lysosomes, which are organelles found in cells. Cell viability did not change significantly over time, demonstrating that water-soluble warped nanographene has low cytotoxicity and could be used as a fluorescent stain for HeLa cells.
Light-induced cell death in the presence of water-soluble warped nanographenes.

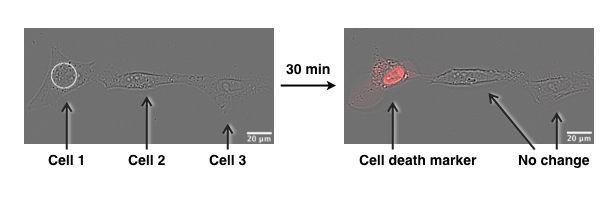

The open circle indicates the positions of blue light irradiation (489 nm, 18 seconds) and the red fluorescence indicates cell death (propidium iodide, a cell-impermeable nucleic acid staining dye used as a cell death marker) after 30 minutes.
However, the molecule can turn deadly under certain circumstances. When the treated HeLa cells were irradiated with a blue laser, they exhibited cell death after 30 minutes. Untreated HeLa cells did not.
"Although our new warped nanographene has low toxicity to HeLa cells, we were surprised to find that cell death was observed upon irradiating light to the cells stained with the new nanographene," says Itami.
The specific mechanism of how this cell death occurs is not clear yet, but the group speculates that a toxic singlet oxygen molecule is generated during irradiation and is responsible for cell death. Several other compounds are known to cause photo-induced cell death, but there is still a need to discover molecules that can absorb longer wavelengths to be safely used to treat cancer cells in deep tissues. The researchers envisage that their method to functionalize and tune warped nanographenes could lead to biocompatible molecules that absorb different wavelengths of irradiation.
"We have succeeded in synthesizing a water-soluble warped nanographene showing fluorescence, good photostability and low cytotoxicity, which makes it promising for bioimaging," says Itami. "This achievement is an excellent example showing the output of the extensive collaboration between chemistry and biology ongoing at our institute. We hope that our molecules can be developed further for a wide range of biological applications through further interdisciplinary collaborations."
The outcome of this study not only demonstrates the power of nanocarbons for biological applications, but also shows the rewarding synergy between synthetic chemistry and biology.
Journal Information
This article "A Water-soluble Warped Nanographene: Synthesis and Applications for Photo-induced Cell Death" by Hsing-An Lin, Yoshikatsu Sato, Yasutomo Segawa, Taishi Nishihara, Nagisa Sugimoto, Lawrence T. Scott, Tetsuya Higashiyama, Kenichiro Itami is published online in Angewandte Chemie International Edition
